雙節距輸送鏈條
  • 雙節距輸送鏈條
  • 雙節距輸送鏈條
  • 鏈條介紹
  • 鏈條參數

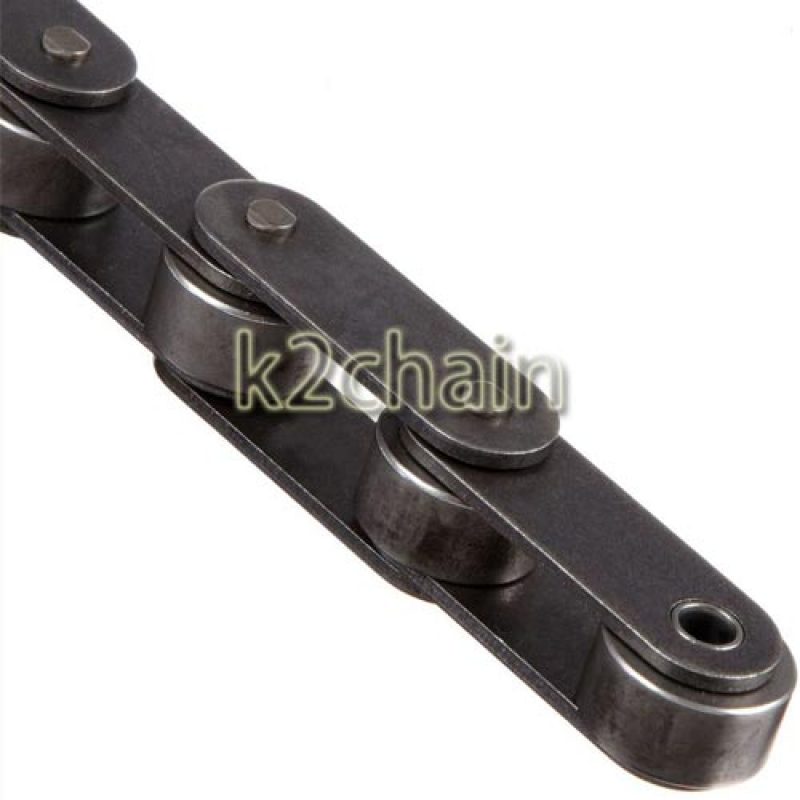

雙節距輸送鏈是把滾子鏈基礎標準GB/T1243-1997《傳動用短節距精密滾子鏈》中所規定的鏈條尺寸,在所有零件的尺寸均保持不變的情況下,只將鏈板孔距增大一倍,從而使鏈條的節距也增大一倍的輸送鏈。實際上雙節距滾子鏈是由短節距精密滾子鏈派生出來的一種輕型鏈條。

雙節距輸送鏈與由其派生出來的短節距精密滾子鏈相比,結構上有如下特點:

1、鏈板孔距增大一倍,且為直邊結構

2、滾子有小滾子與大滾子兩種結構

3、可配置多種附件

特點與應用

由于雙節距輸送鏈只是將短節距精密滾子鏈的節距延長一倍,因此,它的最大特點就是在相同長度內、相同的抗拉載荷下,鏈條的自身重量減輕了。由于鏈條的鉸鏈減少一半,不僅減輕了重量,同時降低了磨損伸長量。此外,由于它的銷軸、套筒、滾子都與GB/T1243-1997《傳動用短節距精密滾子鏈》標準中的尺寸相同,這些零件與相同規格的精密滾子鏈零件通用,因此比較容易實現大批量生產,所以在輸送行業中應用相當廣泛。

雙節距輸送鏈中大滾子與小滾子兩種型式選用的一般原則是:當輸送物品較重、運行要求平穩、輸送距離較長時采用大滾子結構;反之,物品較輕,輸送距離較短或是垂直輸送時,可選小滾子結構。

雙節距輸送鏈的種類和構造

1、與帶附件滾子型鏈相比,鏈條節距成倍數(稱為雙倍節距),鏈板形狀為直板形。

2、滾子種類有小滾子和大滾子,按照用途可區分使用。

3、可使用雙倍節距型鏈輪,或滾子鏈輪(只有小滾子而齒數為30齒以上產品,才可使用)。

4、適用于較長距離、低速輸送。

鏈式輸送機的特點和注意點

特點

1、幾乎能輸送所有形狀的輸送物。

2、可對應廣泛的輸送機長度、輸送方向、使用環境、用途。

3、不打滑的正確輸送。

4、具有耐久性大、高率的特點。

注意點

具有不打滑的特點。但是在受沖擊的用途中,選定時請務必謹慎。

鏈條和鏈輪是咬合機構,特性上有變速的現象。

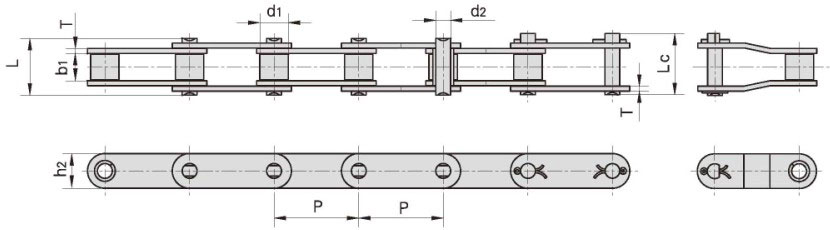

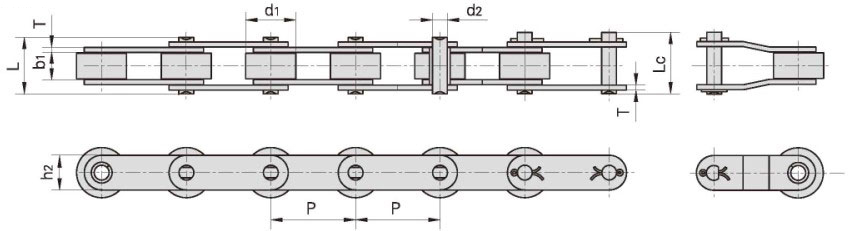

DIN/ISO
鏈號
ANSI 鏈號節距滾子直徑內節內寬銷軸直徑銷軸長度銷軸長度內鏈板高度鏈板厚度極限拉伸載荷平均拉伸載荷每米長重
DlN/ISO
ChainNo.
ANSI
Chain NO.
Pd1 maxb1 mind2 maxL maxLc maxh2 maxT maxQ minQoq
mmmmmmmmmmmmmmmmkN/LBkNkg/m
C208A
C208AL
C2040
C2042
25.407.95 15.887.853.9616.617.812.05014.1/320516.70.50 0.84
C208AHC2040H25.407.957.853.9618.819.912.02.0314.1/320517.20.65
C208B
C208BL
25.408.51 15.887.754.4516.718.211.81.6018.0/409119.40.55 0.89
C210A
C210AL
C2050
C2052
31.7510.16
19.05
9.405.0820.722.215.02.0322.2/504528.10178 1.27
C212A
C212AL
C2060
C2062
38.1011.91
22.23
12.575.9425.927.718.02.4231.8/722736.81.1 2.61
C212AH
C212AHL
C2060H C2062H38.1011.91
22.23
12.575.9429.231.618.03.2531.8/722741.61.44 2.07
C216A
C216AL
C2080
C2082
50.8015.88 28.5815.757.9232.736.524.03.2556.7/1288665.72.08 3.12
C215AH
C216AHL
C2080H C2082H50.8015.88 28.5815.757.9236.239.424.04.0056.7/1288670.02.54 3.58
C220A
C220AL
C2100
C2102
63.5019.05 39.6718.909.5340.444.730.04.0088.5/201.14102.63.01
4.83
C220AH
C220AHL
C2100H C2102H63.5019.05 39.6718.909.5343.646.930.04.8088.5/2011411.2.43.56
5.38
C224A
C224AL
C2120
C2122
76.2022.23 44.4525.2211.1050.354.335.74.80127.0/28864147.34.66 7.66
C224AH
C224AHL
C2120H C2122H76.2022.23 44.4525.2211.1053.557.535.75.60127.0/28864160.95.26
8.26
C232A
C232AL
C2160
C2162
101.6028.58 57.1531.7514.2764.869.647.86.40226.8/51545278.98.15 13.00
C232AH
C232AHL
C2160 C2162H101.6028.58 57.1531.7514.2768.273.047.87.20226.8/51545285.89.06 13.84
雙節距輸送鏈條參數
